Description

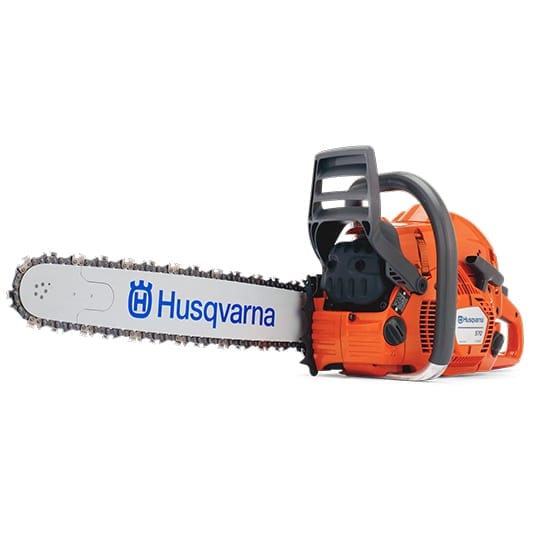

Husqvarna chainsaw 570. A high-performance, powerful saw for demanding professional users.
High torque over a very wide rpm range, productivity boosting features and lower fuel costs make this saw an excellent choice. Always optimal engine setting with AutoTune.
ENGINE SPECIFICATION
Cylinder displacement – 4.14 cu.inch / 68 cm³
Cylinder bore – 1.93 inch / 49 mm
Cylinder stroke – 1.42 inch / 36 mm
Power output – 4.9 hp / 3.6 kW
Maximum power speed – 9600 rpm
Fuel tank volume – 23.67 fl oz / 0.7 litre
Fuel consumption – 420 g/kWh
Ignition module air gap – 0.01 ” / 0.3 mm
Idling speed – 2700 rpm
Spark plug – NGK BPMR7A
Electrode gap – 0.02 ” / 0.5 mm
Torque, max. – 4.3 Nm/7500 rpm
LUBRICANTS
Oil tank volume – 0.85 US pint / 0.4 litre
Oil pump type – Automatic
VIBRATION & NOISE DATA
Equivalent vibration level (ahv, eq) front / rear handle – 3.2/3.4 m/s²
Sound pressure level at operators ear – 105 dB(A)
Sound power level, guaranteed (LWA) – 116 dB(A)
CUTTING EQUIPMENT
Chain pitch – 3/8″
Recommended bar length, min-max – 15″-28″ / 38-71 cm
Chain speed at max power – 70.21 fts / 21.4 m/s
Chain gauge – 0.058 “
Sprocket type – Rim 7
Bar mount – Large
OVERALL DIMENSIONS
Weight (excl. cutting equipment) – 15 lbs / 6.8 kg
